MAD5010 310KV
MAD5010 motors come in two concept design versions. The ENTHUSIASTS EXTREME EDITION for extreme weight reduction while maintaining the highest possible performance. And the INDUSTRY PRO EDITION achieving water and dust proof IP35 degree of protection together with compatibility of mounting possibilities for motor and propellers.

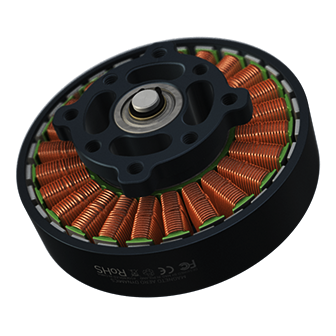

MAD5010 310KV EEE
ENTHUSIASTS EXTREME EDITION
- Reduced motor weight
- Open body design for better passive heat dissipation
- Compatibility for propeller installation
- Motor mounting holes standarization
- Repairable
- Maximized performance
- Low power consumption
- Designed for 6S-8S voltage

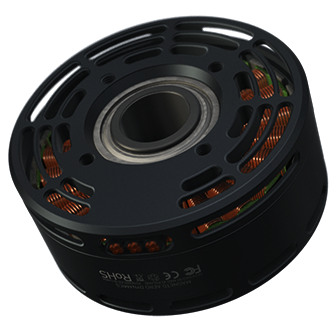

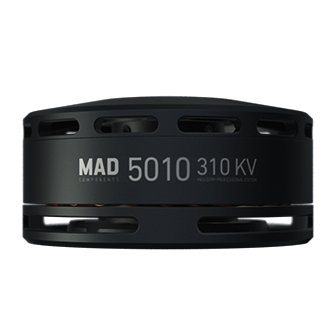

MAD5010 310KV IPE
INDUSTRY PROFESSIONAL EDITION
- Water and dust proof IP35 degree of protection
- Internal fan for active heat dissipation
- Ultra durable bearings
- Hollow shaft design
- Propeller installation adapters
- Motor mounting holes standarization
- Repairable
- Maximized performance
- Low power consumption
- Designed for 6S-8S voltage

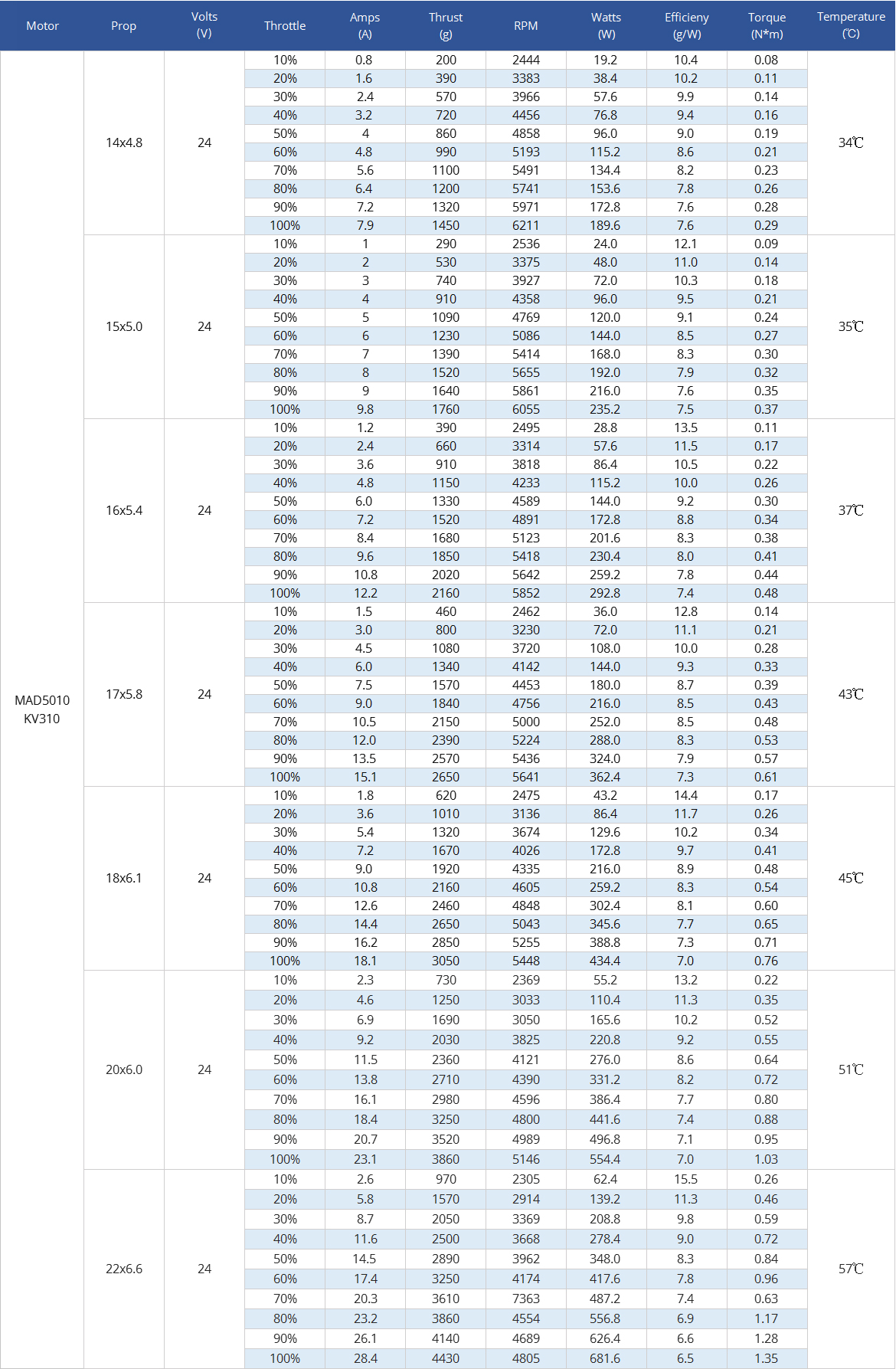

PERFORMANCE & BENCHMARKS
For interactive performance charts, please visit application store for iOS or Android mobile devices and download MAD Configurator for free.
SPECIFICATIONS
| MAD5010 | EEE | |
| Configuration | 24N28P | |
| RPM/V | 310KV | |
| Stator Size | 50 x 10 mm | |
| Motor Dimensions | 56 x 27.9 mm | EEE |
| Shaft Diameter | 6 mm | EEE |
| Continuous Power (60 mins) | 330 W | |
| Maximum Power (60 secs) | 720 W | |
| Maximum Current (60 secs) | 24 A | |
| Idle Current at 16 V | 0.7 A | |
| Internal Resistance | 102 mΩ | |
| Heat Dissipation | Passive | EEE |
| Rotor Balanced | Yes | |
| Heavy Duty Design | No | EEE |
| Degree of Protection | Rainproof | EEE |
| Motor Weight | 155 g | EEE |
| Product Boxed Weight | 270 g | EEE |
| Maximum Thrust | 3500 g (6S) - 4600 g (8S) | |
| Efficiency at 750g Thrust | 15.2 g/W | |
| Propeller Mounting Holes | 2 x M3 Ø12/18 mm | EEE |
| Motor Mounting Holes | 4 x M3 Ø25/30 mm | EEE |
| Wire | Winding Extended 150 mm | |
| Propeller Adapter | No | EEE |
| Additional Accessories | 3x Bullet Connector Set 3x Heat Shrink Tubes 2x M3 10mm 2x Carbon Prop Cover 1x MAD Stickers 2x Black Foam with Hole - Stand for Cup |
| MAD5010 | IPE | |
| Configuration | 24N28P | |
| RPM/V | 310KV | |
| Stator Size | 50 x 10 mm | |
| Motor Dimensions | 56 x 27.5 mm | IPE |
| Shaft Diameter | OD: 15 mm, ID: 13 mm | IPE |
| Continuous Power (60 mins) | 330 W | |
| Peak Power (15 secs) | 720 W | |
| Peak Current (15 secs) | 24A | |
| Idle Current at 16 V | 0.7 A | |
| Internal Resistance | 102 mΩ | |
| Heat Dissipation | Centrifugal Fan | IPE |
| Rotor Balanced | Yes | |
| Heavy Duty Design | Yes | IPE |
| Degree of Protection | IP35 | IPE |
| Motor Weight | 170 g | IPE |
| Product Boxed Weight | 285 g | IPE |
| Maximum Thrust | 3500 g (6S) - 4600 g (8S) | |
| Efficiency at 750g Thrust | 15.2 g/W | |
| Propeller Mounting Holes | 4 x M3 Ø22 mm | IPE |
| Motor Mounting Holes | 4 x M3 Ø30 mm | IPE |
| Wire | Winding Extended 150 mm | |
| Propeller Adapter | 1 pc, 4x M3 Ø12 mm | IPE |
| Additional Accessories | 3x Bullet Connector Set 3x Heat Shrink Tubes 2x M3 10mm 2x Carbon Prop Cover 1x MAD Stickers 2x Black Foam with Hole - Stand for Cup |
RECOMMENDATIONS
| Propeller size | 18" - 24" | 6S |
| Propeller size | 16" - 20" | 8S |
| Takeoff Weight | 700 - 1500 g/rotor | 6S |
| Takeoff Weight | 1000 - 2000 g/rotor | 8S |
