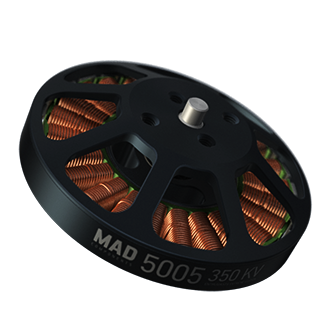

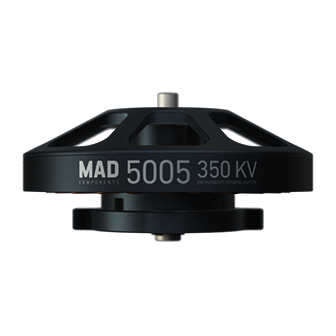

MAD5005 350KV
MAD5005 ENTHUSIASTS EXTREME EDITION motors are designed for extreme weight reduction while maintaining the highest possible performance with low power consumption at high voltage applications.
MAD5005 350KV EEE
ENTHUSIASTS EXTREME EDITION
- Reduced motor weight
- Open body design for better passive heat dissipation
- Compatibility for propeller installation
- Motor mounting holes standarization
- Repairable
- Maximized performance
- Low power consumption
- Designed for 6S voltage
MAD5005 350KV IPE NOT AVAILABLE

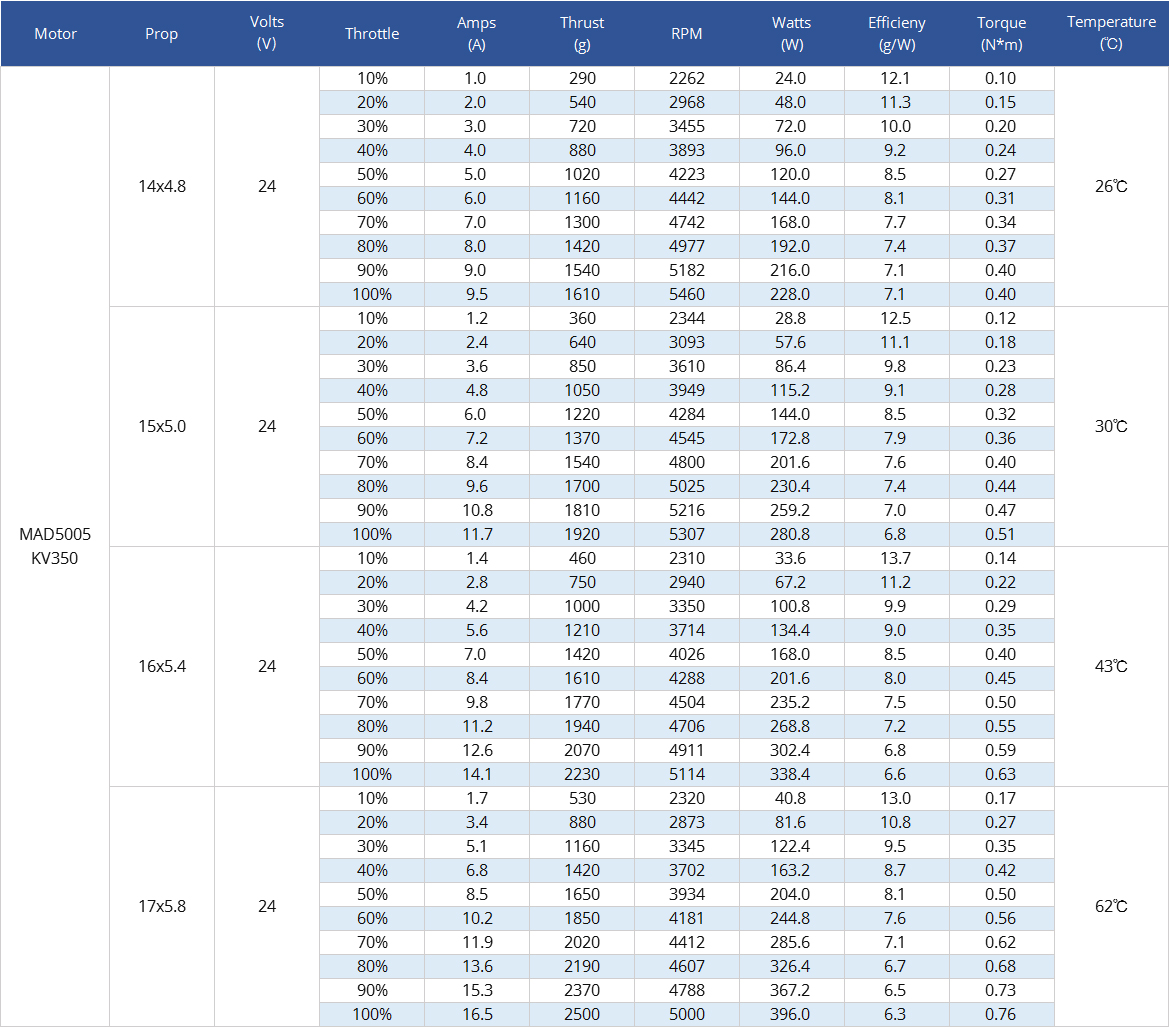

PERFORMANCE & BENCHMARKS
For interactive performance charts, please visit application store for iOS or Android mobile devices and download MAD Configurator for free.
SPECIFICATIONS
| MAD5005 | |
| Configuration | 24N28P |
| RPM/V | 350KV |
| Stator Size | 50 x 5 mm |
| Motor Dimensions | 56 x 28.7 mm |
| Shaft Diameter | 6 mm |
| Continuous Power (60 mins) | 260 W |
| Maximum Power (180 secs) | 500 W |
| Maximum Current (180 secs) | 18 A |
| Idle Current at 16 V | 0.9 A |
| Internal Resistance | 104 mΩ |
| Motor Weight | 110 g |
| Product Boxed Weight | 225 g |
| EEE | |
| Heat Dissipation | Passive |
| Rotor Balanced | Yes |
| Heavy Duty Design | No |
| Degree of Protection | Rain resistant |
| Maximum Thrust | 2400 g (6S) |
| Efficiency at 750 g Thrust | 12.6 g/W |
| Propeller Mounting Holes | 2 x M3 Ø12 / Ø18 mm |
| Motor Mounting Holes | 4 x M3 Ø25 / Ø30 mm |
| Wire | Winding Extended 150 mm |
| Propeller Adapter | No |
| Additional Accessories | 3x Bullet Connector Set 3x Heat Shrink Tubes 2x M3 10mm 2x Carbon Prop Cover 1x MAD Stickers 2x Black Foam with Hole - Stand for Cup |
RECOMMENDATIONS
| Propeller size | 16" - 18" | 6S |
| Takeoff Weight | 700 - 1500 g/rotor | 6S |
