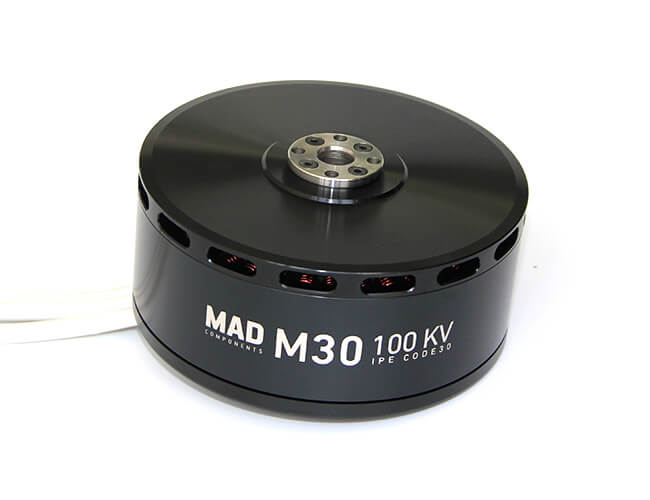

M30 100KV
M30 INDUSTRY PRO EDITION UAV motor is designed to achieve waterproof and dustproof IP35 degree of protection. Design compatibility of mounting holes for propeller and setup installation. High performance and low power consumption at high voltage applications.
M30 INDUSTRY AND AGRICULTURE
M30 100KV IPE
INDUSTRY PROFESSIONAL EDITION
- Water and dust proof IP35 degree of protection
- Internal fan for active heat dissipation
- Ultra durable bearings
- Propeller installation adapters
- Motor mounting holes standarization
- Repairable
- Maximized performance
- Low power consumption
- Designed for 12S-16S voltage

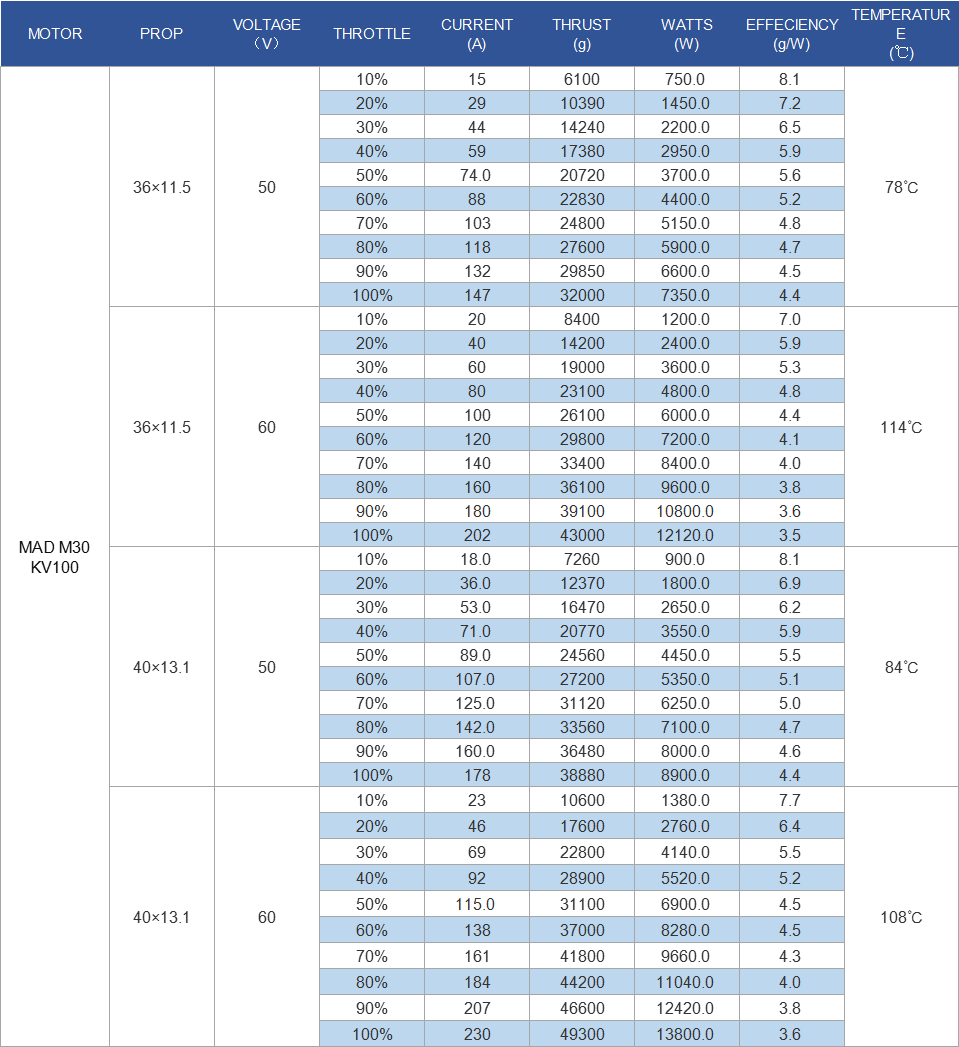

PERFORMANCE & BENCHMARKS
For interactive performance charts, please visit application store for iOS or Android mobile devices and download MAD Configurator for free.
SPECIFICATIONS
| M30 100KV | IPE |
| Configuration | 36N30P |
| RPM/V | 100KV |
| Stator Size | 108 x 30 mm |

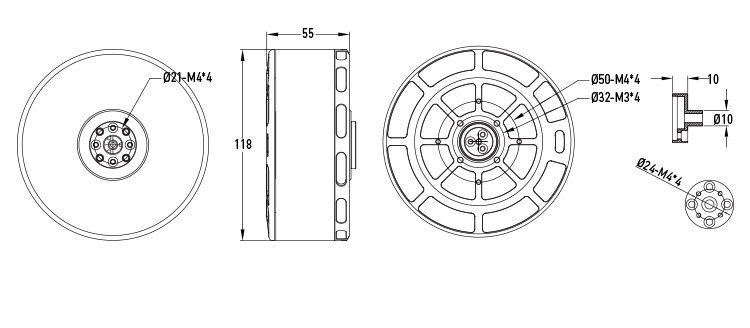

| Motor Dimensions | 118 x 55 mm |
| Shaft Diameter | 15 mm |
| Continuous Power (60 mins) | 7 kW |
| Maximum Power (60 secs) | 14 kW |
| Maximum Current (60 secs) | 230 A |
| Idle Current at 16V | TBA |
| Internal Resistance | mΩ |
| Motor Weight | 1450 g |
| Product Boxed Weight | 1780 g |
| IPE | |
| Heat Dissipation | Centrifugal Fan |
| Rotor Balanced | Yes |
| Heavy Duty Design | Yes |
| Degree of Protection | IP35 |
| Maximum Thrust | 49300 g (60V) |
| Efficiency at 20 kg Thrust | 5.9 g/W |
| Propeller Mounting Holes | 4 x M3 Ø25 mm |
| Motor Mounting Holes | 4 x M3 Ø50 mm 4 x M4 Ø32 |
| Wire | Winding Extended 150 mm |
| Propeller Adapter | 1 pc |
| Additional Accessories | 3x Bullet Connector Set 3x Heat Shrink Tubes 2x M4 10mm 2x Carbon Prop Cover 1x MAD Stickers 2x Black Foam with Hole - Stand for Cup |
RECOMMENDATIONS
| Propeller size | 36" - 40" | 16S |
| Takeoff Weight | 15 - 25 kg/rotor | 16S |
