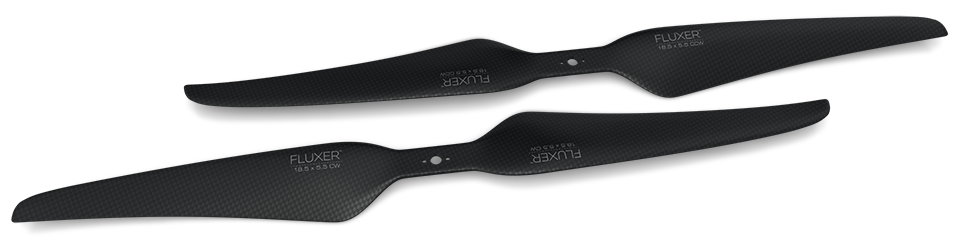

FXR 18.5 x 5.5
FLUXER 18.5 x 5.5 carbon fiber propellers have been designed exclusively for multirotors. Reduced weight, improved rigidity and redesigned airfoil shape along with balsa and carbon fiber structure of propeller results in excellent efficiency and better responsiveness of propultion system.
FXR 18.5 x 5.5
- Reduced propeller weight
- Improved rigidity
- Optimized airfoil
- Improved responsivness
- Prop mounting holes standarization
FXR 18.5 x 5.5 ULTRA
- Ultra light design
- Optimized moment of inertia
- Maximized performance
- Higher responsivness
PERFORMANCE & BENCHMARKS
For interactive performance charts, please visit application store for iOS or Android mobile devices and download MAD Configurator for free.
MOBILE APP COMING SOON
SPECIFICATIONS
| FXR 18.5 x 5.5 ROBUST | |
| Size | 18.5" / 470 mm |
| Pitch | 5.5" / 140 mm |
| Maximum RPM | 15000 |
| Maximum Thrust | 10 kg |
| Propeller Mounting Holes | 2 x M3 Ø12 mm | OPTION Ø18 mm |
| Center / Shaft Hole | Ø6 mm |
| Additional Accessories | 2 x Ring Ø6 to Ø4 mm |
| Weight | 31 g |
| Product Boxed Weight | 250 g |
| FXR 18.5 x 5.5 ULTRA | |
| Size | 18.5" / 470 mm |
| Pitch | 5.5" / 140 mm |
| Maximum RPM | 12000 |
| Maximum Thrust | 5.5 kg |
| Propeller Mounting Holes | 2 x M3 Ø12 mm | OPTION Ø18 mm |
| Center / Shaft Hole | Ø6 mm |
| Additional Accessories | 2 x Ring Ø6 to Ø4 mm |
| Weight | 21 g |
| Product Boxed Weight | 240 |
